How to Setup SSRS to Use HTTPS – Part 1

This blog post was on my list of “things to do” for a while, but it wasn’t until a good friend of mine, Niall Brady, asked me if I had a guide on how to setup SSRS to use HTTPS that I pushed this post to the top of my list! In the end, I wrote a two-part post. In this one I cover all of the steps you need in order to request your server certificate (website certificate) for use with SSRS and then I show you how to setup SSRS to use the Network Service account. In my second post, I show you how to setup SSRS to use the server certificate for HTTPS, how to test the SSRS website and finally how to clean-up the SSRS site if you get an “OLD” folder.

The overall process is as follows:

  • Install the IIS Management Console.
  • Import the server certificate from your domain certificate authority.
  • Prepare SSRS for the server certificate.
  • Setup SSRS to use the server certificate.
  • Test the SSRS website.
  • Clean-up.

Setup SSRS to Use HTTPS Prerequisites

In order to put together this step-by-step guide, I created a new virtual machine (VM) {cm-rps-cb1} and then installed SQL Server 2017 (How to Install SQL Server 2017). Next, I installed SSRS itself (How to Install SQL Server Reporting Services 2017) and then finally, I installed the SCCM Reporting Services Point (How to Install a SCCM Reporting Services Point). Long ago, I setup a domain certificate authority in my domain, so you should have the same too.

This is my starting point. From here, I will show you how to setup SSRS to use HTTPS.

Install the IIS Management Console

Setup SSRS to use HTTPS - Add Roles and Features

Click on the Add roles and features link.

Setup SSRS to use HTTPS - Before You Begin

Click Next. By the way, if you previously selected the Skip this page by default option, this page is not displayed.

Setup SSRS to use HTTPS - Installation Type

Click Next.

Setup SSRS to use HTTPS - Server Selection

Click Next.

Setup SSRS to use HTTPS - Server Roles-Add Features Button

Select Web Server (IIS). A second window instantly pops-up. Click on the Add Features button to return to the first window.

Setup SSRS to use HTTPS - Server Roles

Click Next.

Setup SSRS to Use HTTPS - Features

Click Next.

Setup SSRS to Use HTTPS - Web Server Role (IIS)

Click Next.

Setup SSRS to Use HTTPS - Role Services

Unselect everything EXCEPT IIS Management Console and then click Next.

Setup SSRS to Use HTTPS - Confirmation

Click Install.

Setup SSRS to Use HTTPS - Results

Wait for the installation to complete.

Setup SSRS to Use HTTPS - Add Roles and Features Wizard-Close Button

Finally, click on the Close button. The IIS Management Console is now installed.

Import the Server Certificate from Your Domain Certificate Authority

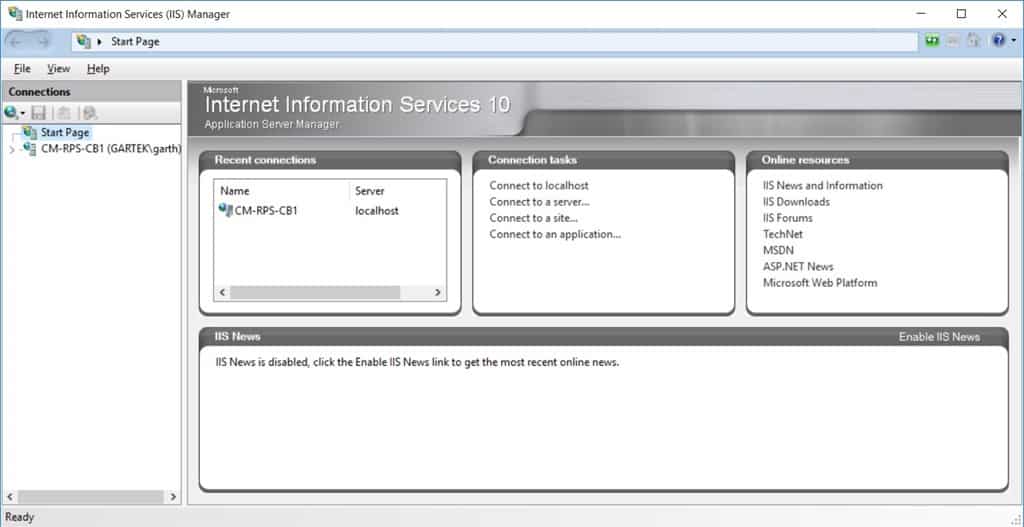

Setup SSRS to Use HTTPS - Internet Information Services (IIS) Manager

Launch Internet Information Services (IIS) Manager.

Setup SSRS to Use HTTPS - Connections-Server Certificates

In the Connections window, select your server name (in my case it’s CM-RPS-CB1) and then in the home page area, under the IIS section, double-click on Server Certificates.

Setup SSRS to Use HTTPS - Actions-Create Domain Certificate

In the Actions area, click on Create Domain Certificate…

Setup SSRS to Use HTTPS - Common Name

IMPORTANT – Make sure that you type the Common name correctly. Not doing so causes a ton of headaches!

If you are not sure what the common name is, it can either be the NetBIOS name or the fully qualified domain name (FQDN).

Complete all of the fields with the correct details before clicking Next.

Setup SSRS to Use HTTPS - Online Certification Authority

Click on the Select… button.

Setup SSRS to Use HTTPS - Select Certification Authority

Select your domain certificate authority name from the list and then click OK.

Setup SSRS to Use HTTPS - Friendly Name

Enter a Friendly name. This name helps you to quickly identify this certificate from other certificates. Finally, click on the Finish button.

Setup SSRS to Use HTTPS - Server Certificates

Notice that the server certificate is created and imported on the server. You can now close the Internet Information Services (IIS) Manager.

Prepare SSRS for the Server Certificate

Setup SSRS to Use HTTPS - Report Server Configuration Connection

Open Report Server Configuration Manager. On the Report Server Configuration Connection window, click on the Connect button.

Setup SSRS to Use HTTPS - Report Server Configuration Manager

Back on the Report Server Configuration Manager window, select Service Account.

Setup SSRS to Use HTTPS - Service Account

Set the account to Network Service.

NOTE: If the Report Server Service Account is already listed as the Network Service, you do not need to complete the remainder of the steps in this post. You can skip over to the Setup SSRS to use HTTPS section, which appears in Part 2 of this blog post set. Part 2 is published next week.

Setup SSRS to Use HTTPS - Network Service-Apply

Once the account is set to Network Service, click Apply.

Setup SSRS to Use HTTPS - Backup Encryption Key

Click on the “” button.

Setup SSRS to Use HTTPS - Encryption Key Name

Give the encryption key a name and save the file to your desktop. Click on the Save button to continue.

Setup SSRS to Use HTTPS - Encryption Key Password

Enter and confirm the password before clicking on the OK button.

NOTE: This password must be complex.

Setup SSRS to Use HTTPS - SQL Server Connection Dialog

Notice in the results section that the encryption key was backed up. Also, notice that the SQL Server Connection Dialog window pops-up. Click OK to continue.

Setup SSRS to Use HTTPS - Service Account-Results

Wait for the results to complete (about a minute).

In my next blog post, I continue along from this point by showing you how to setup SSRS to use the server certificate for HTTPS, test the SSRS website and how to clean-up the SSRS website if you get an “OLD” folder. Please feel free to touch base with me @GarthMJ.
